40P cable Without Cover 20978-040T-01 40pin lvds connector
LDC EDP cable 20978-040T-01 cable:
| Mating Direction | Horizontal |

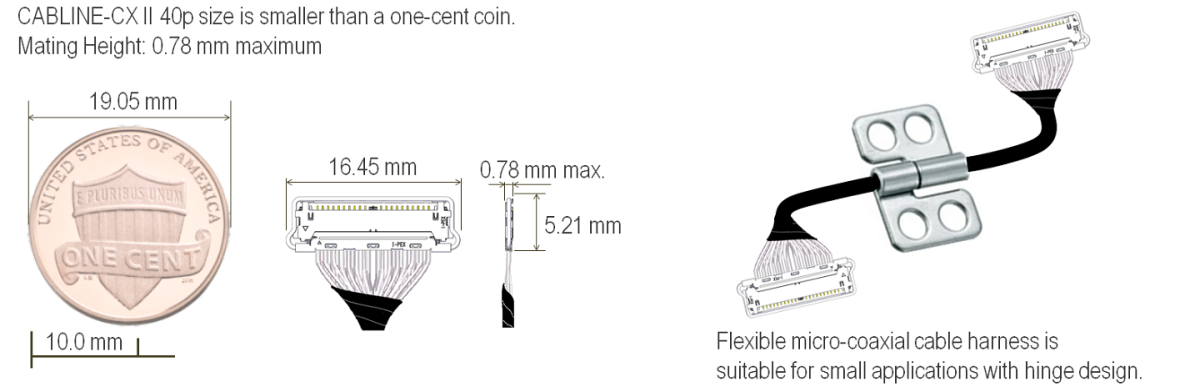

| Contact pitch | 0.25 mm |
| Height | 0.78 Max (0.73 Nom.) , |
| Depth | 5.21 mm |
| Width Formula | 16.45 mm |
| Pin count | 40 |
| Micro-Coaxial Cable (AWG) | #44 #46 |
| Discrete Cable | #39 #40 #42 #44 #46 |
| Current rating | 0.10A AC/DC [AWG #46] per contact/up to 40 contacts 0.15A AC/DC [AWG #44] per contact/up to 40 contacts 0.30A AC/DC [AWG #39] per contact/up to 40 contacts |
| Applicable Standards (Reference Only) | USB 3.1 Gen 1 (5 Gbps) V-By-One HS 1.4 (4 Gbps) eDP (2.7 Gbps) MiPi standards |

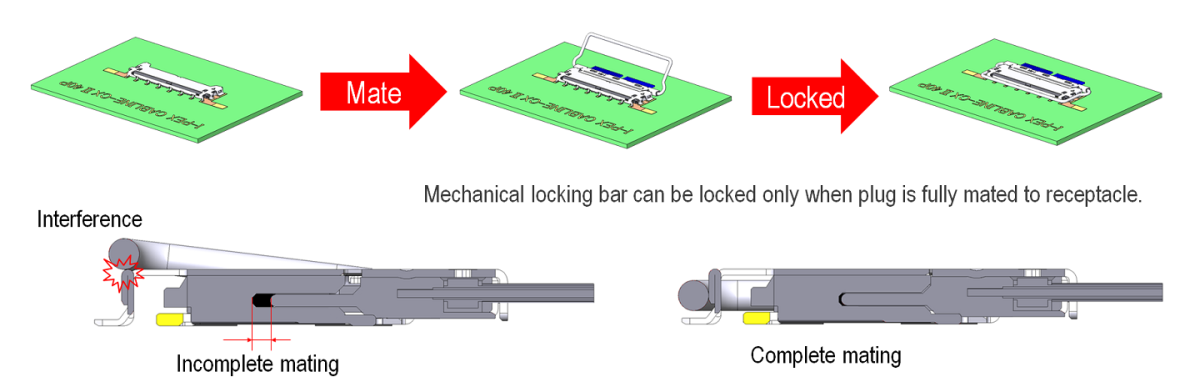

| Mechanical lock | Yes |

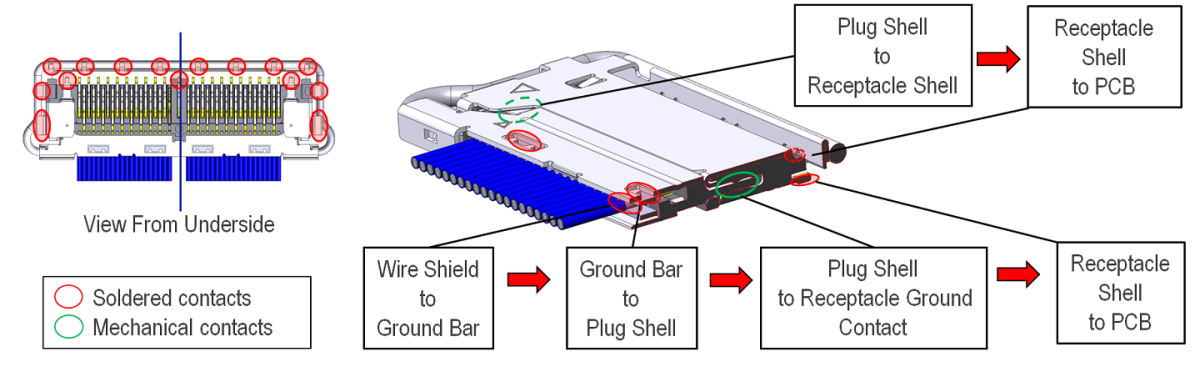

| Full shielding (ZenShield®) | No |
LDC EDP cable 20978-040T-01 cable:
